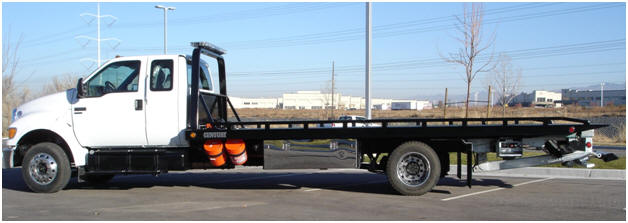

Century/Vulcan 12 and 16 Series LCG Carriers (LOW CENTER OF GRAVITY)

AVAILABLE IN BOTH STEEL AND ALUMINUM

Century and Vulcan continue to lead the industry with the latest designs and technology that increase safety, provide ease of operation, versatility and performance in their towing equipment.

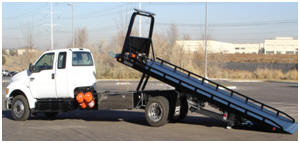

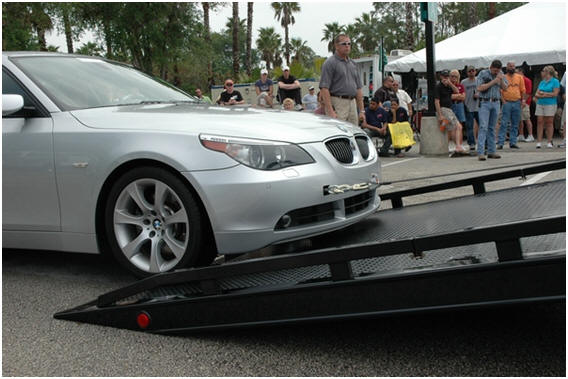

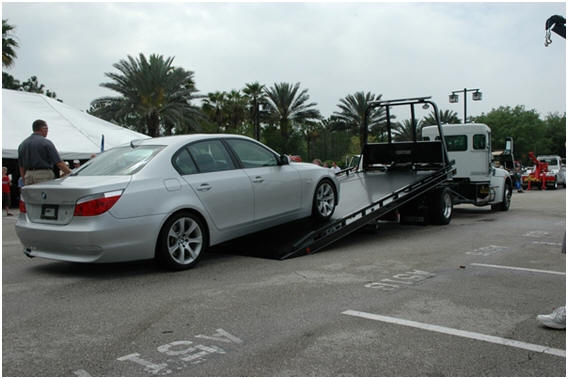

All of these goals have been accomplished in the new 12 and 16 Series LCG carriers.  The LCG (Low Center of Gravity carrier) has a 5” to 6” lower deck height than conventional carriers that increases stability when hauling loads.  The lower deck height also allows for transport of taller loads such as forklifts or manlifts that would be over-height on a conventional carrier and also allows the operator to more easily tie down vehicles or equipment standing on the ground.  When mounted on most air ride chassis, with the air dumped, the LCG has a 10.9-degree load angle allowing the operator to load low clearance automobiles without the use of ramps or wood.  For easy and fast unloading of damaged vehicles and equipment, the series 12 LCG carrier has a 20 degree dump angle in most applications.  The LCG is available in 21’, 21 ½’ and 22’ deck lengths with a capacity of 12,000lbs., an additional key slot package and your choice of wheel lift or dock stabilizer.

2010 FORD CHASSIS NOW AVAILABLE IN STOCK…BEFORE EMISSION CHANGES!

2010 Ford F650 SuperCab XLT – White – Gray Interior – Cummins (6.7L ISB 260HP) Exhaust Brake – Allison 2200 5-Speed Transmission - 239 Wheelbase/144” CA – Front Suspension (I Beam Type 8,500lb Cap) – Rear Suspension (Air Suspension – 20,000lb Cap,  Air Suspension Dump Valve, 4.33 Axle Ratio – Air Brakes – 65 Gallon Steel Tank – SEATS (Air Ride DRIVER 30% & 2 Passenger 70%, Mortar Cloth Rear Bench Seat) – 19.50 X 7.5 Polished Aluminum Disc, 10-Hole Wheels – 245/70R19.5G Tires - XLT Package includes, Air Horn, telescoping breakaway type mirrors, AM/FM Visteon Stereo with Single CD and Clock.
